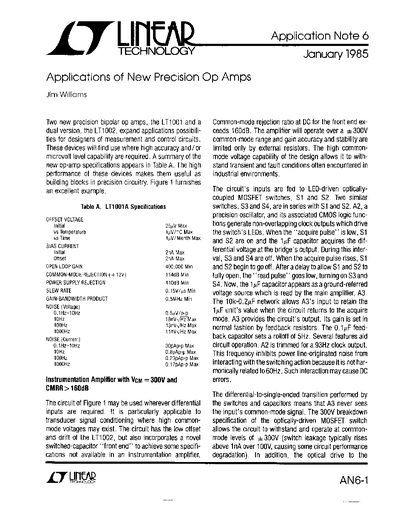

This document introduces two new precision bipolar operational amplifiers, the single-channel LT1001 and the dual version LT1002. These devices are designed for measurement and control circuits requiring high accuracy or microvolt-level capability. Key specifications include an initial offset voltage of 25uV maximum, a bias current of 2nA maximum, and an open-loop gain of at least 400,000.
| Initial Offset Voltage | 25uV Max |
|---|---|
| Bias Current (Initial) | 2nA Max |
| Open Loop Gain | 400,000 Min |
| Common-Mode Rejection | 114dB Min |
| Power Supply Rejection | 110dB Min |
The maximum initial offset voltage is 25uV.
The minimum open-loop gain is 400,000.
The circuit allows operation over a +300V common-mode range.
