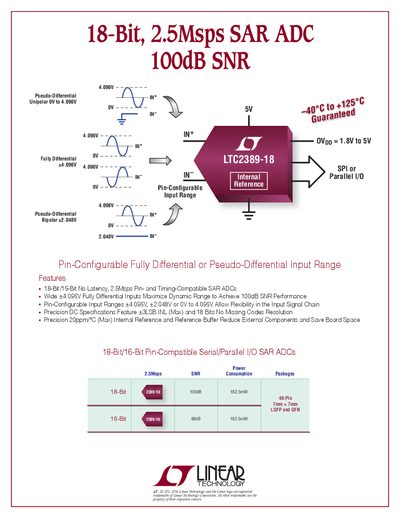

LINEAR 2PB_238918fb 18-Bit 2.5Msps SAR ADC 100dB SNR

The document describes a 18-bit/16-bit no-latency, 2.5Msps SAR ADC with wide ±4.096V fully differential inputs, maximizing dynamic range to achieve 100dB SNR performance. It has pin-configurable input ranges of ±4.096V, ±2.048V or 0V to 4.096V, precision DC specifications, and a precision internal reference and reference buffer. The ADC is suitable for various applications.

Brand: Linear Technology
Category: Data Converters
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 691 KB
Published: 05 June, 2012
Updated: 28 September, 2023
Model: 5MSPS
MD5 checksum: 5CC6A0C478E79A07644C892D5229BC42
PDF: LINEAR 2PB_238918fb 18-Bit 2.5Msps SAR ADC 100dB SNR PDF

About this manual

The LTC2389-18 is a high-speed Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC) featuring 18-bit or 16-bit resolution and no latency. It supports a maximum sampling rate of 2.5Msps with an Signal-to-Noise Ratio (SNR) of up to 100dB.

What's inside

Features
Pin-Compatible ADCs
Power Consumption
Input Ranges

Specifications

Resolution	18-Bit/16-Bit
Sampling Rate	2.5Msps
SNR	100dB
Power Consumption (18-Bit)	162.5mW

Frequently asked questions

What is the maximum sampling rate of this ADC?

The device supports a maximum sampling rate of 2.5Msps.

How much power does the 18-bit version consume?

The 18-bit configuration consumes 162.5mW of power.

What is the maximum input voltage for fully differential inputs?

The fully differential input range can reach a maximum of +4.096V.
