LINEAR 2PB_5569f Highest Performance Lowest Power Dual Mixers

The LTC5569 is a low power dual mixer from Linear Technology, with a frequency range of 300MHz to 4GHz, IIP3 of 26.8dBm, gain of 2dB, NF/5dBm Blocking of 11.7/17.0dB and a power supply voltage of 3.3V/182mA.

Brand: Linear Technology
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 638 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 21BCE4E929058228B1AD42852E129D24
PDF: LINEAR 2PB_5569f Highest Performance Lowest Power Dual Mixers PDF

About this manual

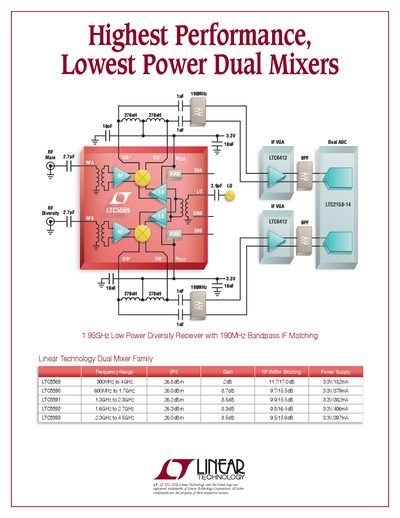

The document presents the LTC5569 as part of the Linear Technology Dual Mixer Family. It is characterized by its operation range of 300MHz to 4GHz, a conversion gain of 26.8dBm, and a supply voltage of 3.3V drawing 182mA.

What's inside

LTC5569 Specifications
Dual Mixer Family Comparison
Application Circuit
Performance Metrics

Specifications

Frequency Range	300MHz to 4GHz
Conversion Gain	26.8dBm
Supply Voltage	3.3V
Power Consumption	182mA

Frequently asked questions

What is the operating frequency range of the LTC5569?

The device operates from 300MHz to 4GHz.

What is the maximum input power rating for the LTC5569?

The device handles a maximum of 26.8dBm.
