This document presents a catalog of switching regulator circuits, including 12 basic circuit categories, as well as references and detailed information on cited sources.

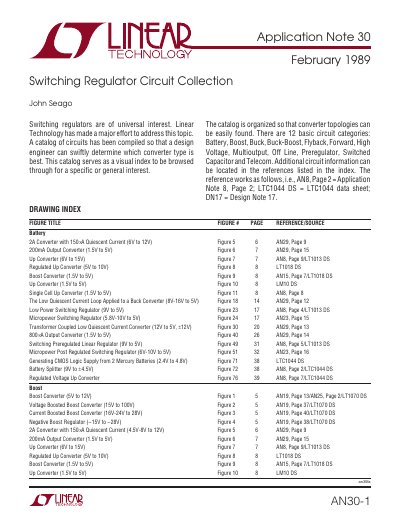

This document is a circuit collection compiled by Linear Technology, published in February 1989. It serves as a visual index for design engineers to swiftly determine which type of switching regulator is best suited for their specific application needs.
The catalog organizes circuits into 12 basic categories: Battery, Boost, Buck, Buck-Boost, Flyback, Forward, High Voltage, Multioutput, Off Line, Preregulator, Switched Capacitor, and Telecom. Each entry includes a figure title, page number, and reference source such as other Application Notes or Data Sheets.
The document lists Battery, Boost, Buck, Buck-Boost, Flyback, Forward, High Voltage, Multioutput, Off Line, Preregulator, Switched Capacitor and Telecom.
References are listed as Application Note number followed by Page number (e.g., AN8, Page 2) or Data Sheet part number (e.g., LTC1044 DS).
