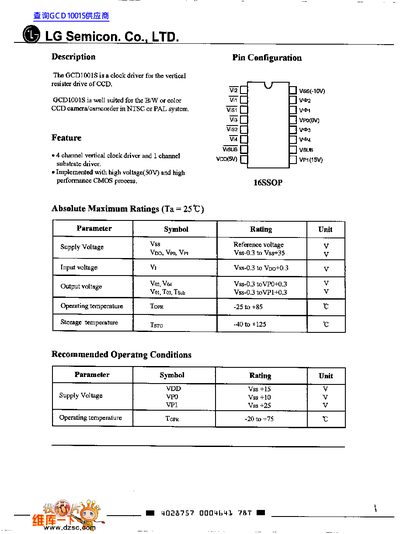

The LG Semicon GCD1001S is a high-voltage (50V) CMOS clock driver designed for the vertical resistor drive of CCD cameras in NISC or PAL systems. It features four output channels (VO1 to VO4) and one substrate output (VSub), implemented in a 16SSOP package.
| Package Type | 16SSOP |
|---|---|
| Supply Voltage (VDD) | +15 V |
| Operating Temperature | -20 to +75 C |
| Output Current (VO1 to 4) | -25 mA / 12 mA |
The device should be operated between -20 and +75 degrees Celsius under recommended conditions.
