The LP064V1 is a 6.4 inch VGA resolution TFT LCD display produced by LG.Philips LCD company.

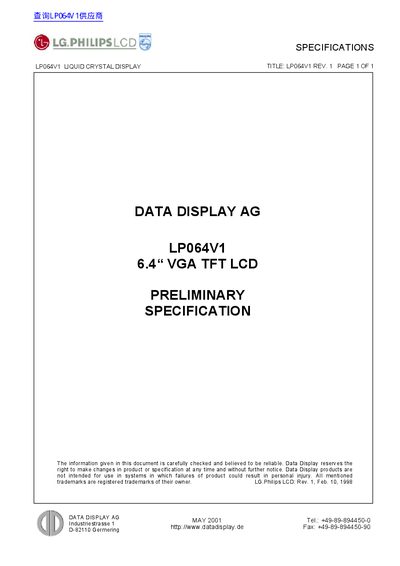

This document is a preliminary specification for the LG.Philips LCD model LPO64V1, a 6.4-inch diagonal active matrix liquid crystal display. It features a 640x480 pixel VGA resolution with RGB stripe arrangement and a 6-bit gray scale signal, operating in a normally white transmissive mode. The display includes an integral Cold Cathode Fluorescent Tube (CCFT) backlight system and utilizes a-Si Thin Film Transistor technology.
| Active Display Area | 6.4 inches diagonal |
|---|---|
| Resolution | 640 x 480 pixels |
| Color Depth | 262,144 colors |
| Power Consumption | 0.9 to 1.54 W |
| Contrast Ratio | 100 to 250:1 |
| Response Time (Rise) | 20 to 50 msec |
| Backlight Life | 20,000 to 25,000 hours |
The operating temperature range is 0 to +50 °C.
The pixel pitch is 0.204 mm x 0.204 mm.
It uses an integral Cold Cathode Fluorescent Tube (CCFT) back light system.
