The VCXO series 550 is a 14 pin DIP HCMOS / TTL output product with a wide voltage control range, 40/60% waveform symmetry, industry standard DIP 14 pin lead spacing and RoHS / lead free compatibility.

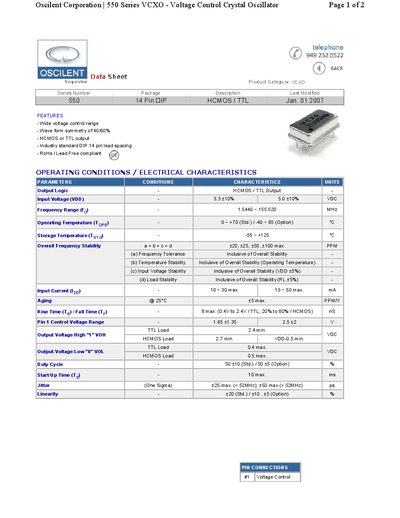

This document is a datasheet for the Oscilent 550 Series VCXO, a voltage-controlled crystal oscillator. It details key features such as wide voltage control range, HCMOS or TTL output options, and RoHS/Lead Free compliance.
The text provides comprehensive electrical characteristics including frequency ranges from 1.544 to 155.520 MHz, operating temperatures, input/output voltage specifications, and timing parameters like rise time and jitter. It also includes a part number guide for customizing the oscillator based on supply voltage, temperature stability, duty cycle, and pulling range.
| Series Number | 550 |
|---|---|
| Product Type | VCXO - Voltage Control Crystal Oscillator |
| Frequency Range | 1.544 ~ 155.520 MHz |
| Input Voltage (VDD) | 3.3 VDC or 5.0 VDC |
| Output Logic | HCMOS / TTL |
| Package Type | 14 Pin DIP |
The frequency range is from 1.544 MHz to 155.520 MHz.
The device supports input voltages of either 3.3 VDC or 5.0 VDC.
