This document describes the features of the SMD Oscillators series, such as ultra-low jitter, low power consumption, standby function, etc.

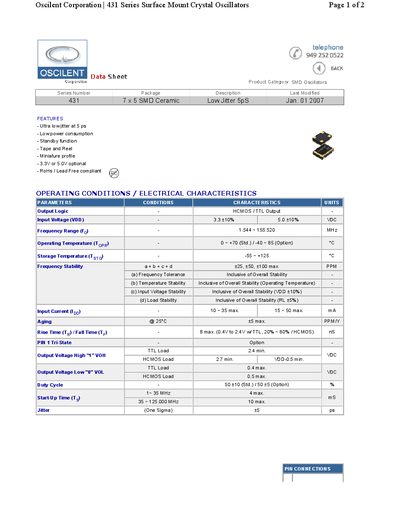

This document is a datasheet for the Oscilent Corporation 431 Series Surface Mount Crystal Oscillators. It describes features such as ultra-low jitter (5 ps), low power consumption, and RoHS/Lead Free compliance. The device supports HCMOS/TTL output logic with optional 3.3V or 5.0V operation.
| Output Logic | HCMOS / TTL Output |
|---|---|
| Frequency Range | 1.544 ~ 155.520 MHz |
| Operating Temperature (Std.) | -O~ +70 °C |
| Jitter (One Sigma) | 5 ps |
| Package Type | 7 x5 SMD Ceramic |
The device supports optional 3.3V or 5.0V operation.
Yes, the oscillators are RoHS / Lead Free compliant.
