This document is the TXCO Surface Mount Series Product Manual, which mainly introduces the features and characteristics of this series of products, including frequency range, output load, output level, frequency stability, input voltage, current, frequency adjustment, rise time/fall time, duty cycle, storage temperature, control voltage, etc.

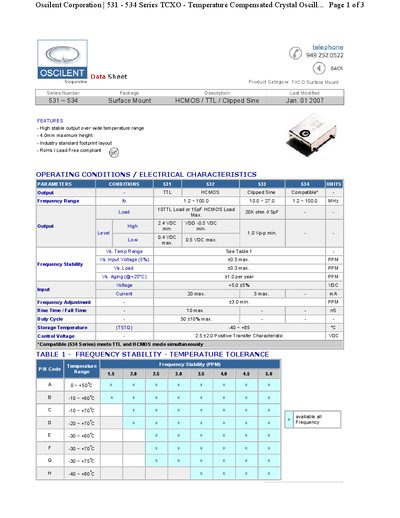

This document is a technical datasheet for the Oscilent Corporation's 531 through 534 series of Surface Mount Temperature Compensated Crystal Oscillators (TCXO). The devices are designed with an industry-standard footprint layout and feature high output stability over a wide temperature range, with a maximum height of 4.0mm.
| Series | 531 ~ 534 |
|---|---|
| Product Type | Temperature Compensated Crystal Oscillator (TCXO) |
| Frequency Range | 1.2 ~ 100.0 MHz |
| Supply Voltage (VDD) | 2.4 VDC |
| Output Level (HCMOS) | 1.0 Vp-p min. |
| Frequency Stability vs Aging | +1.0 per year PPM |
| Storage Temperature Range | -40 ~ +85 °C |
The maximum height for these oscillators is 4.0mm.
Yes, they are RoHS/Lead Free compliant.
