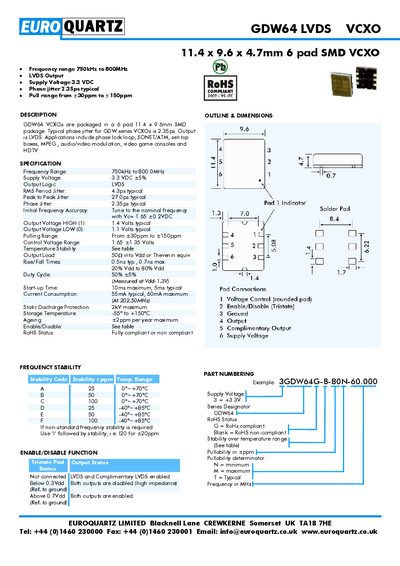

EURO QUARTZ GDW64 LVDS 11.4 x 9.6 x 4.7mm 6 pad SMD VCXO

The document provides specifications and characteristics of the VCXO product manufactured by EUROQUARTZ, including dimensions, supply voltage, frequency range, stability, pulling range, and output logic.

Brand: EURO
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 105 KB
Published: 05 June, 2012
Updated: 29 September, 2023
MD5 checksum: 66B3FF46AC24A409FDF1BE5604E09537
PDF: EURO QUARTZ GDW64 LVDS 11.4 x 9.6 x 4.7mm 6 pad SMD VCXO PDF

About this manual

The EuroQuartz GDW64 is a Voltage Controlled Crystal Oscillator (VCXO) packaged in a 6-pad Surface Mount Device (SMD) format measuring 11.4 x 9.6mm. It features an LVDS output and operates with a supply voltage of 3.3 VDC.

What's inside

DESCRIPTION
SPECIFICATION
FREQUENCY STABILITY
ENABLE/DISABLE FUNCTION
OUTLINE & DIMENSIONS

Specifications

Frequency Range	750kHz to 800MHz
Supply Voltage	3.3 VDC +5%
Output Logic	LVDS
Phase Jitter	2.35ps typical
Pulling Range	+30ppm to +150ppm
Rise/Fall Times	0.5ns typ., 0.7ns max.

Frequently asked questions

What are the applications for the GDW64 VCXO?

Applications include phase lock loop, SONET/ATM, set-top boxes, MPEG, audio/video modulation, video game consoles and HDTV.

What is the typical RMS Period Jitter?

The typical RMS Period Jitter is 4.3ps.
