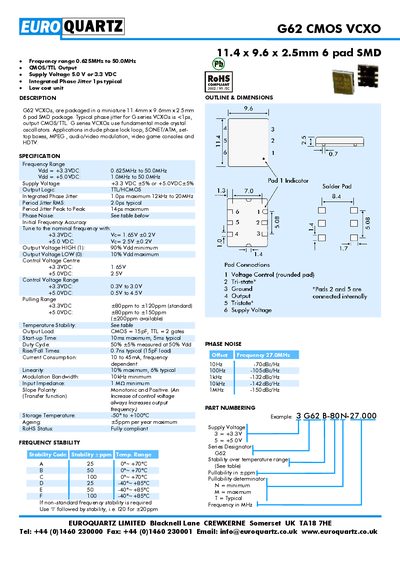

This document describes the features and characteristics of the G62 CMOS VCXO product produced by EUROQUARTZ LIMITED, including frequency range, supply voltage, integrated phase jitter, etc.
The EuroQuartz G62 is a miniature 11.4mm x 9.6mm x 2.5mm SMD package VCXO designed for applications such as phase lock loops, SONET/ATM, set-top boxes, and video game consoles. It utilizes fundamental mode crystal oscillators to achieve typical phase jitter of less than 1ps.
| Frequency Range | 0.625MHz to 50.0MHz |
|---|---|
| Supply Voltage | +3.3 VDC or +5.0VDC |
| Package Size | 11.4 x 9.6 x 2.5mm |
| Integrated Phase Jitter | <1ps typical |
| Output Logic | CMOS/TTL |
| Temperature Stability Range A | -50° to + 100°C |
The typical phase jitter is less than 1ps.
Applications include phase lock loop, SONET/ATM, set-top boxes, MPEG, audio/video modulation, video game consoles and HDTV.
