Semiconductors Inc N-Channel Junction Field Effect Transistors Datasheet

No

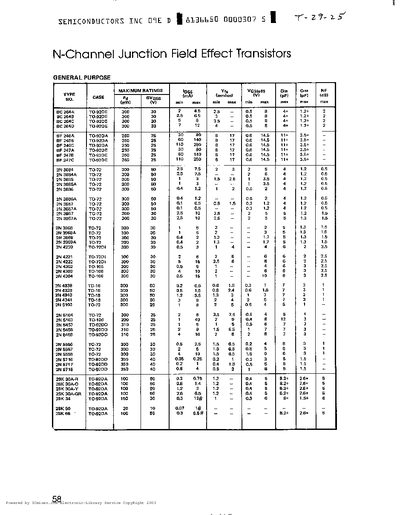

Semiconductors Inc N-Channel Junction Field Effect Transistors Datasheet - cover page
Brand
N-Channel
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
296 KB
Published
05 June, 2012
Updated
02 October, 2023
MD5 checksum
28772C8FAC92507322F6B7A17089EE22

About this manual

This document provides technical data for a range of N-channel junction field effect transistors (JFETs) manufactured by Semiconductors Inc. The parts are categorized into three main functional groups: General Purpose, VHF/UHF Amplifier, and Switching/Chopper applications.

The datasheet details maximum ratings such as drain-source voltage ($V_{DSS}$), gate-source voltage ($V_{GS}$), and continuous drain current ($I_{DSS}$) for each specific model number. It also includes electrical characteristics like input capacitance ($C_{iss}$), reverse transfer capacitance ($C_{rss}$), noise figure (NF), and gain in decibels (dB). Additionally, the document provides pinout diagrams and physical packaging information for TO-92, TO-18, and TO-48D packages.

What's inside

  • General Purpose
  • VHF/UHF Amplifier
  • Switching/Chopper
  • Maximum Ratings
  • Electrical Characteristics
  • Packaging Information

Frequently asked questions

What is the maximum power dissipation for these transistors?

The maximum power dissipation rating is 350 mW.

What is the minimum gate-source voltage required to turn on the device?

The minimum gate-source voltage (Vgs(on)) is 2 volts.
