1Z0364-3 is a high power 3 dB, 90° hybrid coupler manufactured by Anaren that is suitable for microstrip circuits, power amps, dividers/combiners, switch networks, balanced detectors, and antenna feeds. It has a frequency range of 0.44-0.88 GHz, a 2-way power split, a welded tab mount, reliable performance, can handle 280 watts, and meets MIL-E-5400 Class 3 requirements.

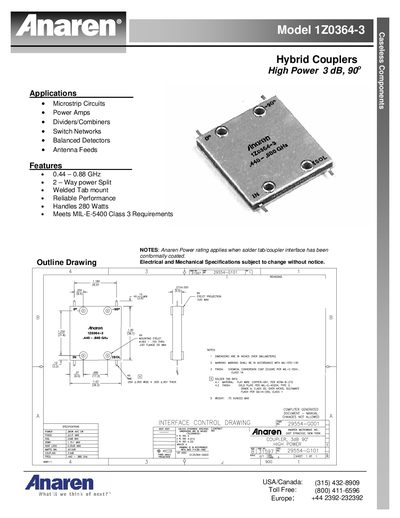

This document is a technical datasheet for the Anaren 1Z0364-3 Hybrid Coupler. It describes the device as a high power 3 dB, 90° component designed for microstrip circuits, power amplifiers, dividers/combiners, and other RF applications.
The datasheet provides key features including an operating frequency range of 0.44 to 0.88 GHz, a two-way power split capability, and the ability to handle up to 280 Watts. It also details mechanical specifications such as welded tab mounting and finish requirements.
| Frequency Range | 0.44 — 0.88 GHz |
|---|---|
| Power Split | 2-Way power Split |
| Mounting Type | Welded Tab mount |
| Power Handling | 280 Watts |
| Military Standard | MIL-E-5400 Class 3 Requirements |
The device operates between 0.44 and 0.88 GHz.
It handles up to 280 Watts when the solder tab interface is conformally coated.
