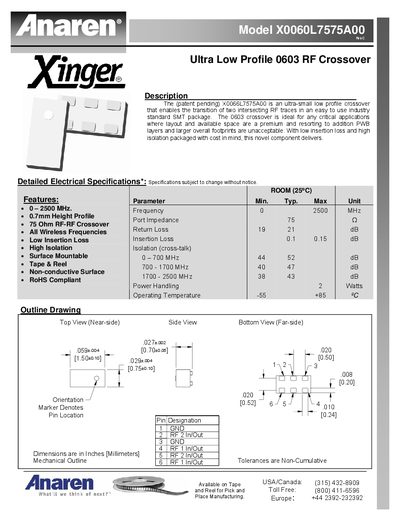

The X0060L7575A00 is an ultra-small low profile crossover that enables the transition of two intersecting RF traces in an easy to use industry standard SMT package. The 0603 crossover is ideal for any critical applications where layout and available space are a premium and resorting to addition PWB layers and larger overall footprints are unacceptable. With low insertion loss and high isolation packaged with cost in mind, this novel component delivers.
The X0060L7575A00 is a 0603 surface‑mount RF crossover designed for applications where space is limited. It provides a 75 Ω port impedance and operates across a wide frequency range while maintaining low insertion loss and high isolation.
Technical specifications include a frequency range of 0‑2500 MHz, insertion loss of 0.1‑0.15 dB, isolation up to 52 dB, power handling of 2 W, and an operating temperature range of –55 °C to +85 °C. The component is RoHS compliant and available on tape and reel packaging.
| Frequency range | 0‑2500 MHz |
|---|---|
| Port impedance | 75 Ω |
| Insertion loss | 0.1‑0.15 dB |
| Isolation (0‑700 MHz) | 44‑52 dB |
| Isolation (1700‑2500 MHz) | 38‑43 dB |
| Power handling | 2 W |
| Operating temperature | -55 °C to +85 °C |
| RoHS compliance | Yes |
It operates from 0 MHz up to 2500 MHz.
The insertion loss is between 0.1 dB and 0.15 dB.
It can handle up to 2 watts of power.
Yes, the component is RoHS compliant.
