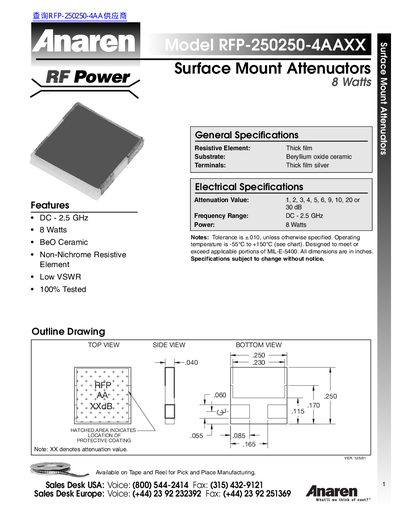

This document is the datasheet of RFP-250250-4AA surface mount attenuator, including the product's impedance characteristics, frequency range, power, features and dimensions.
The Anaren RFP-250250-4AAXX is a surface‑mount attenuator rated at 8 W, with a frequency range from DC to 2.5 GHz and a 30 dB attenuation value. It uses a beryllium‑oxide ceramic substrate and a non‑nichrome resistive element, providing low VSWR (≈1.20:1) and 100 % tested performance.
The datasheet includes mechanical drawings, part‑number tables, and recommended soldering and thermal‑via procedures for reliable PCB mounting. The device is available on tape and reel for pick‑and‑place assembly, with sales contacts for the USA and Europe.
| Frequency Range | DC – 2.5 GHz |
|---|---|
| Power Rating | 8 W |
| Attenuation Value | 30 dB |
| Substrate Material | Beryllium oxide ceramic |
The attenuator is rated for 8 W of power.
It operates from DC up to 2.5 GHz.
The device provides a 30 dB attenuation.
