SENSITRON SHD118211 SHD118211A SHD118211B is a kind of Schottky diode produced by SENSITRON, which has the characteristics of soft reverse recovery, low power loss, high efficiency, high surge capacity and long life.
The SHD118211 series are hermetic Schottky rectifiers offering very low forward voltage drop, soft reverse recovery, and high surge capability. They are designed for high‑efficiency power applications where reliability and low loss are critical.

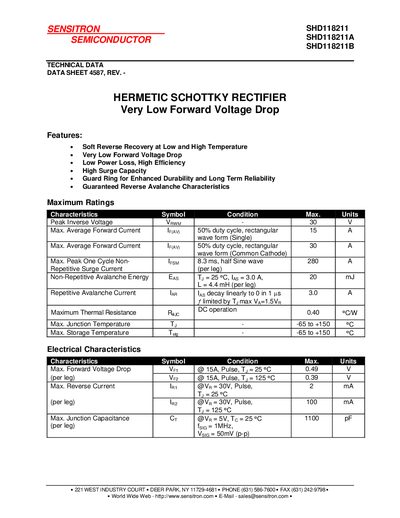

This datasheet lists maximum ratings, electrical characteristics, mechanical dimensions, pinout information, and typical forward and reverse performance curves. It also includes a disclaimer and contact details for Sensitron Semiconductor.
| Peak Inverse Voltage | 30 V |
|---|---|
| Max Average Forward Current (single) | 15 A |
| Max Average Forward Current (common cathode) | 30 A |
| Peak One‑Cycle Surge Current | 280 A |
| Forward Voltage Drop @15 A, 25 °C | 0.49 V |
| Reverse Current @30 V, 25 °C | 2 mA |
| Junction Capacitance @30 V, 25 °C | 1100 pF |
The maximum forward voltage drop is 0.49 V.
The device is rated for a peak inverse voltage of 30 V.
The maximum average forward current for a single rectifier is 15 A.
The maximum surge current per leg is 280 A.
