This data sheet provides the specifications of 1n5807/us, 1n5809/us, 1n5811/us

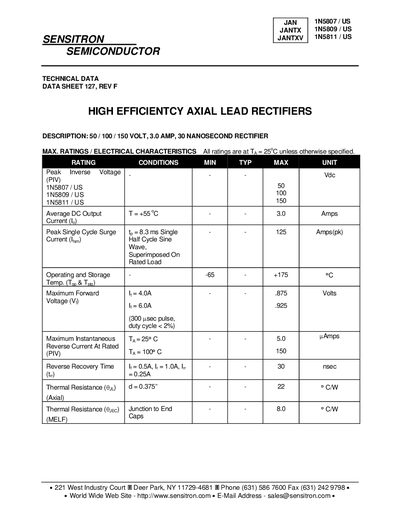

This datasheet describes Sensitron's high‑efficiency axial‑lead rectifiers 1N5807, 1N5809 and 1N5811. It lists electrical ratings such as reverse voltage, forward current, surge capability and thermal characteristics, and includes mechanical dimensions and package information.
The document also contains a disclaimer regarding liability, export restrictions and the need to verify the latest specifications with Sensitron's sales department before ordering.
| Reverse Voltage (1N5807) | 50 V |
|---|---|
| Reverse Voltage (1N5809) | 100 V |
| Reverse Voltage (1N5811) | 150 V |
| Thermal Resistance Junction‑to‑Case (RθJC) | 0.375 °C/W |
| Package Type | MELF‑B |
The 1N5807 is rated for a reverse voltage of 50 V.
They are supplied in a MELF‑B package.
