The product is a 5000 watt high power transient voltage suppressor with glass passivated junction, low incremental surge resistance, excellent clamping capability, repetition rate (duty cycle) of 0.05%, fast response time (typically less than 1.0 ps) and typical IR less than 1µA above 10V.

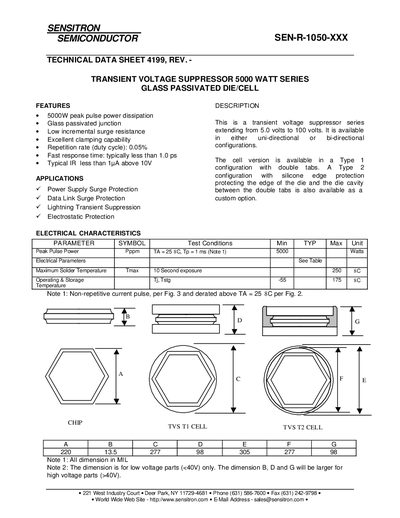

The SEN‑R‑1050‑XXX series is a 5000 W peak‑pulse power transient voltage suppressor (TVS) with glass‑passivated junctions. It offers low incremental surge resistance from 5 V to 100 V, excellent clamping in uni‑ or bi‑directional mode, and a fast response time of less than 1 ps.
Electrical characteristics include a peak pulse power rating of 5000 W, maximum solder temperature of 250 °C, and an operating/storage temperature range of –55 °C to 175 °C. The device is suited for protecting die edges, power‑supply surge protection, lightning transient suppression, and electrostatic discharge protection.
| Operating & Storage Temperature | -55 °C to 175 °C |
|---|---|
| Fast Response Time | <1.0 ps |
| Surge Resistance Range | 5 V–100 V |
The device typically responds in less than 1.0 ps.
It operates from –55 °C to 175 °C.
