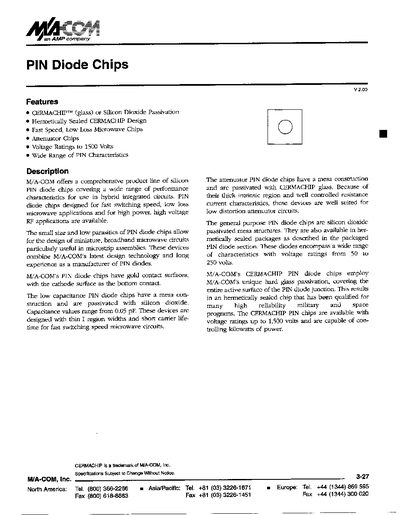

M/A-COM offers a range of silicon PIN diode chips for fast switching, low loss microwave, and high‑power, high‑voltage RF applications. The chips feature gold contacts, hermetically sealed CERMACHIP designs, and are available with voltage ratings from 50 V up to 1 500 V.
The document lists detailed electrical characteristics, maximum ratings, and recommended handling and bonding procedures, including hot‑gas bonding for small CERMACHIP devices and lead bonding techniques for larger chips.
| Voltage rating | up to 1500 V |
|---|---|
| Capacitance range | 0.05 pF to 0.20 pF |
| Maximum reverse current | 10 pA |
| Series resistance measurement frequency | 500 MHz |
| Nominal chip size | 15 × 15 mil |
