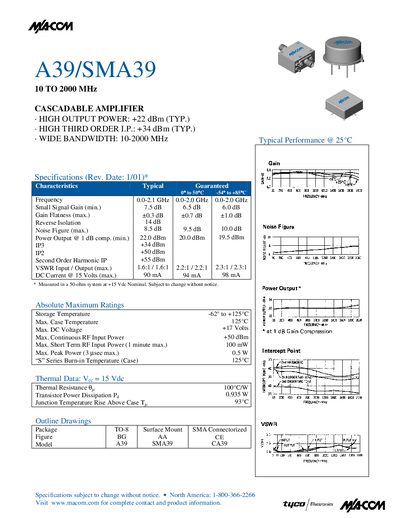

A39/SMA39 10 TO 2000 MHz CASCADABLE AMPLIFIER is a high output power (+22 dBm typical), high third order I.P. (+34 dBm typical) and wide bandwidth (10-2000 MHz) amplifier.
This document provides technical data for the MACOM A39 and SMA39 models, which are cascable amplifiers operating in the frequency range of 10 to 2000 MHz. Key performance features include high output power up to +22 dBm typical and a wide bandwidth suitable for various RF applications.
| Frequency Range | 10 to 2000 MHz Typical Performance @ 25°C |
|---|---|
| High Output Power (Typ.) | +22 dBm |
| High Third Order LP. (Typ.) | +34 dBm |
| IP3 @ 10-200 MHz | +34 dBm |
| VSWR Input/Output (max.) @ 10-200 MHz | Lo:b/ 16:1 |
| DC Current @ 15 Volts (max.) @ 10-200 MHz | 90 mA |
| Storage Temperature | -62° to +125°C |
| Max Case Temperature | 125°C |
| Package Types | TO-8 Surface Mount, SMA Connectorized |
The typical high output power is +22 dBm.
The device operates from 10 to 2000 MHz with typical performance at 25°C.
The amplifier is available in TO-8 Surface Mount and SMA Connectorized packages.
