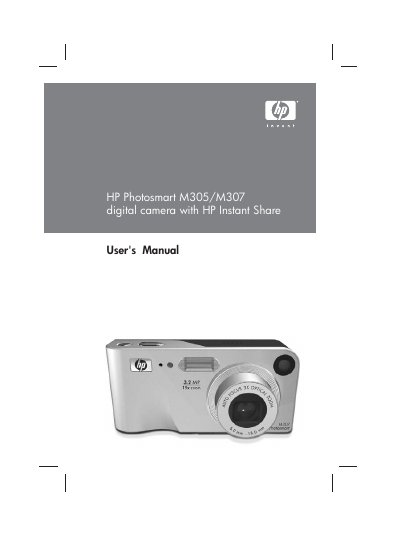

This is the user manual for the HP Photosmart M305/M307 digital camera. It introduces the camera's features and usage methods.
This manual guides HP Photosmart M305/M307 owners through initial setup, battery installation, memory card insertion, and basic camera operation. It covers menu navigation, shooting modes, zoom, flash, and image review, as well as how to use HP Instant Share to send photos to email or online albums.
Later sections describe transferring and printing images, configuring USB and TV settings, managing batteries, and detailed specifications. The troubleshooting chapter provides error messages, reset procedures, and support contact information. This manual is written in Chinese.
| Still picture resolution (total) | 3.27 MP (2096 × 1560) |
|---|---|
| Still picture resolution (effective) | 3.21 MP (2080 × 1544) |
| Sensor diagonal | 6.73 mm (1/2.7‑inch) |
| Color depth | 36 bit (12 bits × 3 colors) |
| Lens focal length (wide) | 6.25 mm |
| Lens focal length (telephoto) | 17.25 mm |
| F‑Number (wide) | f/2.9 – f/4.9 |
| F‑Number (telephoto) | f/4.8 – f/8.0 |
| Internal flash memory | 16 MB |
| Typical power usage | 2.1 W (display on) |
| Weight | 146 g |
| Operational temperature range | 0 °C to 50 °C |
Attach the wrist strap to the wrist‑strap mount on the side of the camera as shown in the manual.
Typical power usage is 2.1 W when the image display is on, with a maximum of 4.5 W.
