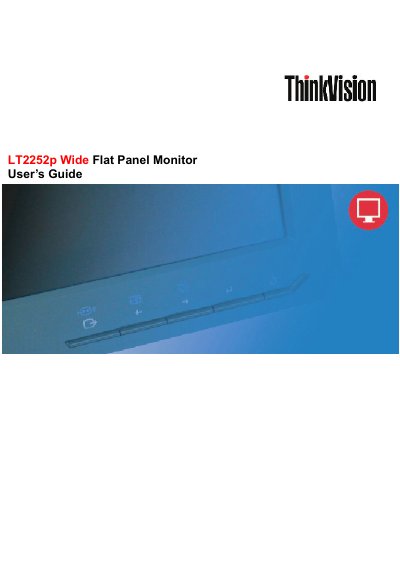

This document is the user manual of Lenovo LT2252p Flat Panel Monitor. It mainly introduces the characteristics, features, usage methods and maintenance methods of the monitor.
This user guide covers safety and maintenance guidelines for the Lenovo LT2252p wide flat‑panel monitor, including power‑cord requirements, grounding, and cleaning procedures. It also explains how to register the product and obtain technical support.
The manual details the setup process—connecting analog, DVI, or DisplayPort cables, mounting the monitor on a VESA arm, and adjusting tilt, swivel, and height. It includes a specifications table, troubleshooting tips, and service information for warranty and repair.
| Dimensions (H × D × W) | 367.28 mm × 296.10 mm × 473.76 mm |
|---|---|
| Tilt range | 0° to +30° |
| Swivel range | -45° to +45° |
| Lift (height) adjustment | 110 mm |
| VESA mount | 100 mm (3.94 in) compatible |
| Native resolution | 1680 × 1050 @ 60 Hz |
| Power consumption (typical) | 26 W |
| Power consumption (standby) | < 0.5 W |
Press the top of the monitor, remove the fixed pin, and slide the monitor up or down to adjust the height up to 110 mm.
The monitor supports VESA standard modes within the ranges 30 kHz–83 kHz horizontal and 50 Hz–75 Hz vertical, with a native resolution of 1680 × 1050 @ 60 Hz.
