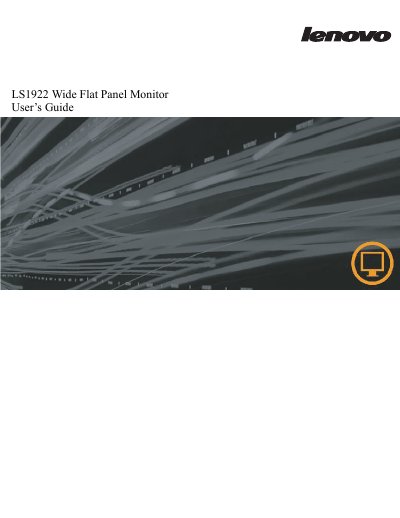

Lenovo LS1922 Monitor User Guide

This is a user manual for LS1922 monitor, introducing the features and usage of the monitor.

Brand: ThinkVision
Category: Monitor
Document type: User Manual
Language: English
Pages: 30
File format: PDF
File size: 4.6 MB
Published: 04 June, 2012
Updated: 30 September, 2023
MD5 checksum: E9EDAEF40BEA11C20CCE679CB0238E7C
PDF: Lenovo LS1922 Monitor User Guide PDF

About this manual

This User’s Guide explains how to unpack, install, and operate the LS1922 wide flat‑panel monitor. It includes a list of shipped items, instructions for attaching the base, connecting the analog video cable, and installing the driver CD.

The guide also covers ergonomic setup, monitor positioning, tilt adjustment, and power‑management features. Safety information, cable‑lock security, troubleshooting tips, and full technical specifications are provided for proper use and maintenance.

What's inside

Safety information
Getting started
Attaching the base and handling your monitor
Product overview
Setting up your monitor
Adjusting and using your monitor
Monitor specifications
Troubleshooting

Specifications

Dimensions (HxDxW)	370.1 mm x 210.0 mm x 442.2 mm
Stand Tilt Range	-5° to +20°
VESA Mount Size	100 mm

Frequently asked questions

How do I connect the LS1922 monitor to my computer?

Connect the analog signal cable to the video port on the back of the computer, then plug the monitor power cord into a grounded outlet.

How can I secure the monitor against theft?

The monitor has a cable‑lock slot on the rear; attach a compatible cable lock to prevent unauthorized removal.
