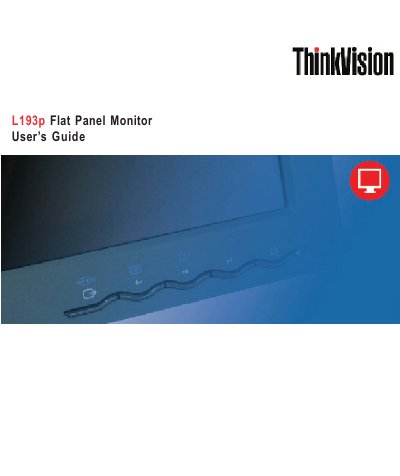

This document is the user guide for the Lenovo L193p flat panel monitor, published by Lenovo in 2007. It describes the features and characteristics of the product.
This guide covers everything needed to get the ThinkVision L193p monitor up and running. It lists the shipping contents, explains how to connect power, analog, and digital cables, and describes the cable‑lock slot and VESA mounting options. Safety information and warranty details are also included.
The manual details how to adjust tilt, swivel, height, and pivot, and provides on‑screen display (OSD) control instructions. Reference sections contain full monitor specifications, troubleshooting steps, driver installation guidance, and worldwide service and support contacts.
| Tilt range | -0°, +30° |
|---|---|
| Swivel range | -45°, +45° |
| Lift range | 110 mm |
| Pivot | Clockwise 90° |
| VESA mount | 100 mm × 100 mm |
| Image viewable size | 381 mm × 301 mm |
| Native resolution | 1280 × 1024 @ 60 Hz |
Press the top of the monitor, remove the fixed pin, and slide the monitor up or down to the desired height.
The monitor’s native resolution is 1280 × 1024 pixels at 60 Hz.
