CXW-160-A F801 Range Hood Installation Guide

This document provides installation and instruction guide for range hoods with models CXW-160-A F801 K, CXW-218-AKF808, and CXW-180-AKF810PA.

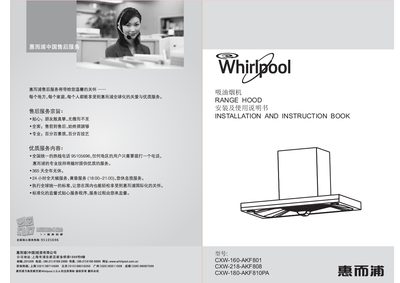

CXW-160-A F801 Range Hood Installation Guide - cover page
Brand
Whirlpool
Category
Range hoods
Document type
Installation Guide
Language
English
Pages
8
File format
PDF
File size
3.5 MB
Published
04 June, 2012
Updated
28 September, 2023
MD5 checksum
5999576C1F285096D11182788E984D37
PDF
CXW-160-A F801 Range Hood Installation Guide PDF

About this manual

This manual provides step‑by‑step installation procedures for the CXW-160-A F801 range hood, covering mounting, wiring, and setup instructions.

It also lists key dimensions and clearances, such as a width of 1150mm‑1250mm (1220mm‑1320mm) and a required duct diameter of 48 mm.

What's inside

  • Installation
  • Instruction

Specifications

Width1150mm‑1250mm (1220mm‑1320mm)

Frequently asked questions

What is the width range of the CXW-160-A F801 range hood?

The width is 1150 mm‑1250 mm (1220 mm‑1320 mm).
