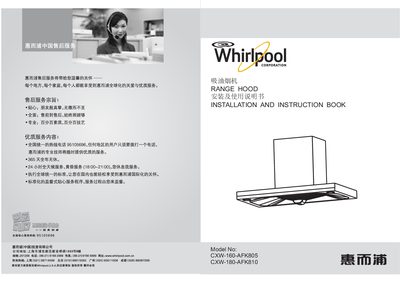

The document is about the instructions for CXW-160-AFK805 and CXW-180-AFK810, introducing the product's functions, features, installation methods and usage instructions
The document introduces the Whirlpool CXW‑160‑AFK805 and CXW‑180‑AFK810 kitchen range hoods, describing their design, safety features, and intended use in a home kitchen. It emphasizes that the units are external‑exhaust type and must be installed according to the provided guidelines.
The manual covers everything from unpacking, mounting, and wiring to operating the touch‑control panel, cleaning the oil cup and filters, troubleshooting common faults, and contacting customer service. Technical specifications, warranty terms, and regulatory compliance information are also included. This manual is written in Chinese.
| Motor input power | 160 W (CXW‑160) / 180 W (CXW‑180) |
|---|---|
| Air flow | 14.5 m³/min |
| Maximum static pressure | 212.9 Pa (CXW‑180) / 207.1 Pa (CXW‑160) |
| Noise level | 69 dBA |
| Voltage | 220 V / 50 Hz |
| Maximum wind pressure | 220 Pa |
The whole unit is covered for three years and the main motor is covered for eight years from the purchase date.
When installed above a gas stove, the distance between the stove surface and the bottom of the hood must be at least 65 cm.
