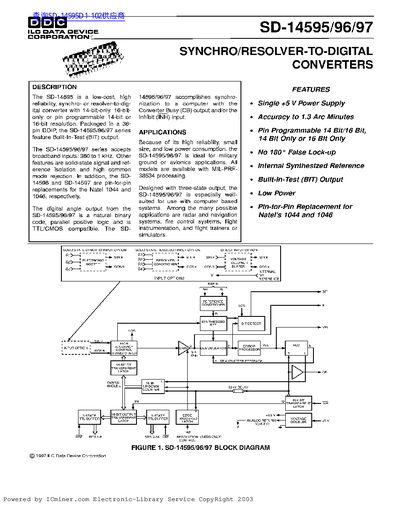

The SD-14595/96/97 converters from ILG Data Device are packaged in a 36‑pin DDIP and provide built‑in‑test (BIT) output, solid‑state input isolation, and high common‑mode rejection. They accept broadband inputs from 360 Hz to 1 kHz and are available with MIL‑PRF‑38534 processing for military and avionics use.
The devices deliver a natural‑binary digital angle output compatible with TTL/CMOS logic, feature programmable resolution, and include digital interface functions such as inhibit latching, tri‑state outputs, and parallel data transfer to 8‑ or 16‑bit buses.
| Resolution | 14 or 16 bits |
|---|---|
| Accuracy | Min 5.2, 2.6, or 1.3 arc‑minutes |
| Input Frequency Range | 360 Hz to 1 kHz |
| Input Impedance (single‑ended) | 250 kΩ min |
| Power Supply Voltage | +5 V nominal |
| Power Supply Tolerance | +10 % tolerance |
| Operating Temperature Range | -55 °C to +125 °C |
The converter accepts broadband inputs from 360 Hz up to 1 kHz.
The supply voltage tolerance is ±10 % of the nominal +5 V.
