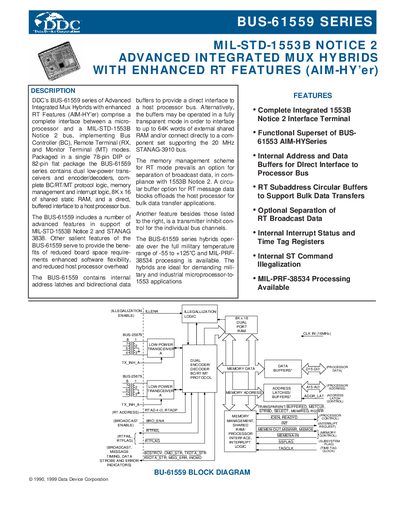

DDC’s BUS-61559 series of Advanced Integrated Mux Hybrids with enhanced RT Features (AIM-HY’er) comprise a complete interface between a micro-processor and a MIL-STD-1553B Notice 2 bus, implementing Bus Controller (BC), Remote Terminal (RT), and Monitor Terminal (MT) modes.
The BUS-61559 series from Data Device provides an advanced integrated MUX hybrid that implements Bus Controller, Remote Terminal and Monitor Terminal modes for MIL‑STD‑1553B Notice 2 buses. It is packaged in a single 78‑pin DIP or 82‑pin flat package and includes dual low‑power transceivers, encoder/decoders, 8K × 16 shared static RAM and full protocol logic.
Ordering information lists various process and temperature grades, power‑supply options (+5 V/‑15 V, +5 V/‑12 V, etc.) and MIL‑PRF‑38534 compliance. The device operates from –55 °C to +125 °C and is suitable for demanding military and industrial microprocessor‑to‑1553 applications.
| Package | 78‑pin DIP or 82‑pin flat package |
|---|---|
| Transceivers | Dual low‑power transceivers and encoder/decoders |
| RAM | 8K × 16 shared static RAM |
| Operating temperature | -55 °C to +125 °C |
| Power supply options | +5 V/‑15 V DDIP, +5 V/‑12 V DIP, +5 V/‑15 V Flat Pack, +5 V Flat Pack |
| MIL‑PRF‑38534 compliance | Available |
It implements Bus Controller (BC), Remote Terminal (RT) and Monitor Terminal (MT) modes for MIL‑STD‑1553B Notice 2 buses.
The device operates from –55 °C to +125 °C.
Available options include +5 V/‑15 V DDIP, +5 V/‑12 V DIP, +5 V/‑15 V Flat Pack, and +5 V Flat Pack.
It includes 8 K × 16 bits of shared static RAM.
