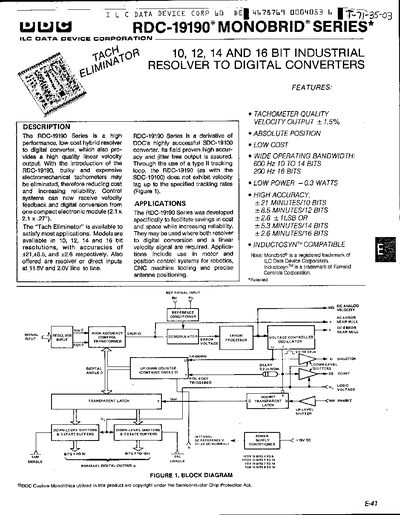

The RDC-19190 Monobrid Series is a high‑performance, low‑cost hybrid resolver‑to‑digital converter that provides fine velocity output. It replaces bulky electromechanical tachometers, offering resolutions of 10, 12, 14, and 16 bits with accuracies ranging from +21 to +2.6 arc‑minutes.
The manual includes detailed specifications, wiring diagrams, logic input/output descriptions, timing information, and ordering data. It also covers installation, operation, and handling guidelines for the converter’s analog and digital interfaces.
| Resolution | 10, 12, 14, 16 bits |
|---|---|
| Power Consumption | 0.3 W |
| Operating Temperature Range | ~30 °C to +70 °C |
| Voltage Input Range | 4 V rms to 50 V rms |
| Input Impedance (single‑ended) | ≥ 50 kΩ |
| Input Impedance (differential) | ≥ 100 kΩ |
| Maximum Supply Current | 15 mA |
| Physical Size | 53 mm × 53 mm × 6.9 mm (2.1 in × 2.1 in × 0.27 in) |
| Weight | 0.7 oz (20 g) |
The converter is offered in 10, 12, 14, and 16‑bit resolutions.
It consumes approximately 0.3 watts of power.
The device operates from about –30 °C up to +70 °C.
The input voltage range is 4 V rms to 50 V rms.
