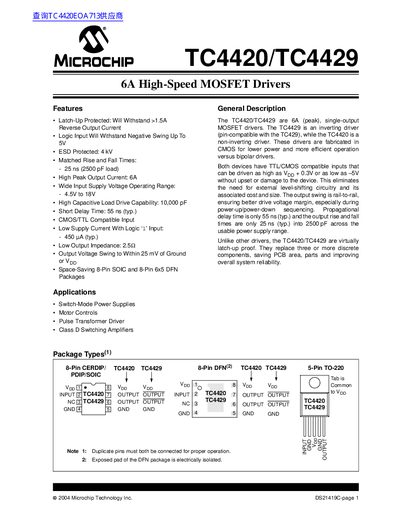

This datasheet introduces the features of TC4420/TC4429 MOSFET drivers, including their characteristics and application scenarios.
The TC4420 (non‑inverting) and TC4429 (inverting) are 6 A peak, high‑speed MOSFET driver ICs designed for switch‑mode power supplies, motor control, and Class D audio. They feature latch‑up protection, ESD protection, and CMOS/TTL compatible inputs.
The document lists detailed electrical characteristics, typical performance curves, and pin‑function tables, including supply voltage range, rise/fall times, propagation delay, and output current capabilities. Pin descriptions and layout notes for SOIC, DFN, and TO‑220 packages are also provided.
| Peak Output Current | 6 A |
|---|---|
| Latch‑Up Protection Current | >1.5 A |
| Supply Input Voltage Range | 4.5 V to 18 V |
| Input Logic High Voltage (Vin) | 2.4 V |
| Input Logic Low Voltage (VIL) | 0.8 V |
| Typical Rise Time (2500 pF load) | 25 ns |
| Typical Fall Time (2500 pF load) | 25 ns |
| Typical Propagation Delay | 55 ns |
| Low Supply Current with Logic ‘1’ Input | 450 pA |
The drivers can deliver a peak output current of 6 A.
Typical propagation delay time is 55 ns.
They operate from 4.5 V up to 18 V.
Yes, they are latch‑up protected and can withstand reverse currents greater than 1.5 A.
