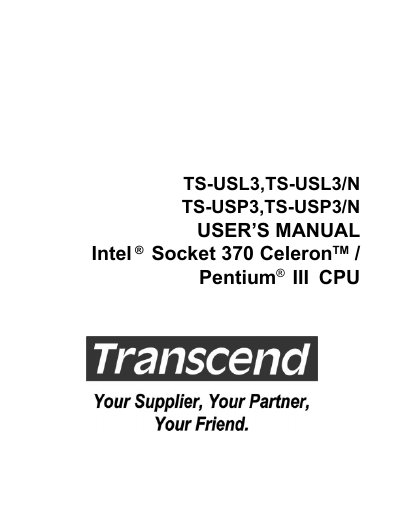

Transcend TS-USL3 TS-USL3/N TS-USP3 TS-USP3/N USER S MANUAL Intel Socket 370 Celeron Pentium III CPU

About this manual

This manual guides end users and system manufacturers through the installation, configuration, and operation of the Transcend TS‑USL3 family motherboards, which support Intel Pentium III and Celeron Socket 370 processors. It includes safety precautions, hardware layout, jumper settings, and BIOS options.

The document also covers software driver installation, BIOS upgrade procedures, and supplemental information for network adapters, along with an appendix of reference files and utilities. This manual is written in Chinese.

What's inside

• Introduction
• Hardware Installation
• BIOS Setup
• Software Setup
• BIOS Upgrade
• Appendix

Specifications

Frequently asked questions

How many DIMM slots does the TS‑USL3 motherboard have?

It provides three 168‑pin DIMM sockets on the board.

What torque limit should be observed when using an electric screwdriver on the motherboard?

Do not set the electric screwdriver above 7.5 kg·cm to avoid damage.

How can the CMOS be cleared on this motherboard?

Place jumper JP1 in the Clear CMOS position as described in the manual.

What type of battery should be used to replace the CMOS battery?

Replace it with the same type or a similar type recommended by the battery manufacturer.
