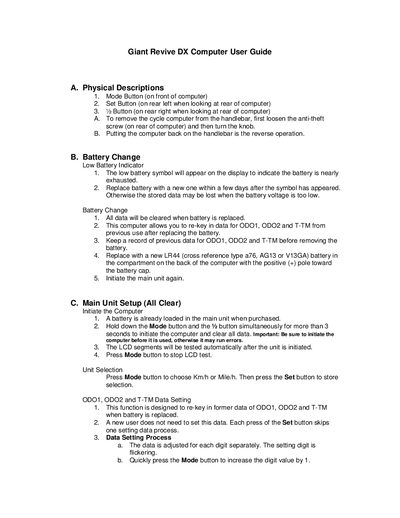

This document is a user guide for the Giant Revive DX computer. The guide provides physical descriptions and operating instructions for the computer, including the mode button, set button, and battery change. It details the steps for removing and installing the computer on the handlebar, as well as replacing the battery and retaining previous data. The computer features a low battery indicator, which displays a symbol when the battery is nearly exhausted. The guide also includes instructions for initiating the computer and clearing all data.
This guide provides a physical description of the Revive DX computer, showing the locations of the Mode, Set, and % buttons and how to mount or remove the unit from a bicycle handlebar. It also details battery replacement, including the LR44 battery type and the effect on stored data.
The manual walks through initial setup, wheel‑circumference calibration, and how to use the various functions such as speed, odometers, total riding time, average speed, and clock settings. It explains button operations, reset procedures, and automatic power‑saving features.
| Battery type | LR44 (a76, AG13, V13GA) |
|---|---|
| Default wheel circumference | 1564 mm |
| Speed units | km/h or mph |
| Clock format | 12 HR or 24 HR |
| Display type | LCD segments |
Open the battery compartment on the back of the computer, insert a new LR44 (a76, AG13, or V13GA) with the positive pole toward the cap, then re‑initiate the unit.
Hold down the Mode button until the LCD digits disappear, then release; the AVG, DST, TM and MAX values will be cleared to zero.
Mark the wheel’s lowest point, roll the bike forward to mark the second point, measure the distance in millimetres, and enter that value in the wheel‑circumference setting screen.
After about four minutes of inactivity the unit automatically switches off and only shows the clock to preserve battery life.
