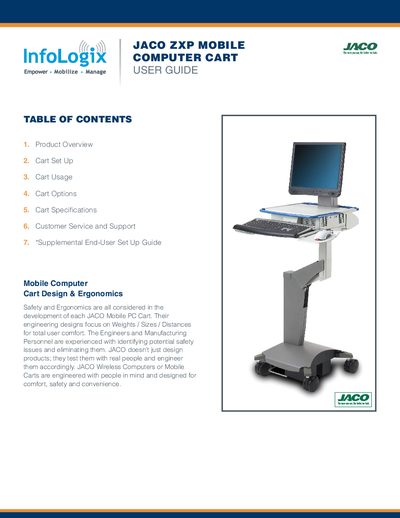

The document introduces the features and characteristics of JACO's ZXP Mobile Computer Cart. The cart provides the perfect foundation for building a mobile wireless system, accommodating virtually any IT hardware configuration. It is loaded with ergonomic features and options for user comfort, safety, and convenience.
The guide introduces the JACO ZXP Mobile Computer Cart, highlighting its ergonomic design, safety considerations, and the engineering focus on user comfort. It describes the cart’s adjustable work surface, swivel casters, and optional security features.
It then details step‑by‑step setup, height adjustment, wheel unlocking, and usage instructions, followed by optional accessories, specifications, and customer support information. Supplemental sections cover keyboard and mouse tray setup and power‑reel handling.
| Work Surface Height (Standing) | 44.5" to 46.5" |
|---|---|
| Work Surface Height (Sitting) | 32.5" to 34.5" |
| Keyboard Tray Height (Standing) | 41" to 43" |
| Keyboard Tray Height (Sitting) | 29" to 31" |
| Work Surface Size | 18" W x 13" D |
| Casters | 4" x 5" Swivel, 2 Locking, 2 Non‑locking |
| Construction | Welded Steel and Aluminum |
| Finish | Highest Quality Powder Coat |
| Weight (Base Model) | 64 lbs |
| Battery | 120 VAC 18 Ah sealed lead acid |
| Battery Weight | 34 lbs |
| UL Certification | UL60601 |
Stand in front of the cart, grasp the front handle, press the foot‑actuated lever, then pull up or push down the handlebar until the desired height is reached, and release the foot.
Hold the cart firmly, lift the wheel lock with your foot until it releases or you hear a click, then the wheels can be moved.
The base model cart weighs 64 lbs.
Clean the cart with isopropyl alcohol or a diluted disinfectant, wipe solutions off immediately, and never allow drying on any surface.
