The 20 SCFM Coalescer features the following specifications: 1/4” port size, NPT, BSPT, BSPP thread styles, 20 SCFM flow capacity at 100 PSI, aluminum and polycarbonate bowl types, 175°F, 200 PSIG maximum temperature and pressure, 0.01 micron and larger filter capacity, less than 1.5 PSID differential pressure, and manual drain, float drain, and float drain with indicator drain options.

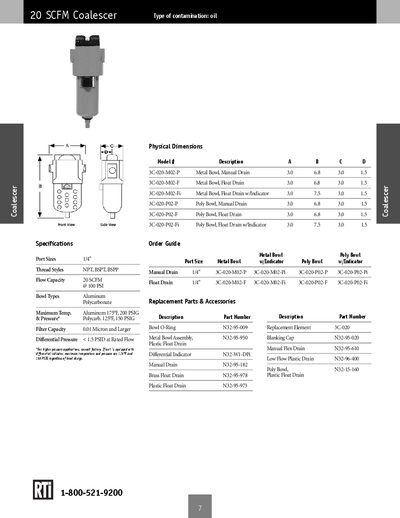

This document lists the 20 SCFM coalescer models designed for oil contamination removal. It includes physical dimensions, flow capacity, temperature and pressure limits, filter capacity, and differential pressure specifications for each bowl type.
The catalog also provides an order guide with part numbers for metal and polycarbonate bowls, manual and float drains, and accessories such as O‑rings, differential indicators and blanking caps.
| Flow Capacity | 20 SCFM @ 100 PSI |
|---|---|
| Maximum Temperature (Aluminum Bowl) | 175°F |
| Maximum Pressure (Aluminum Bowl) | 200 PSIG |
| Filter Capacity | 0.01 Micron and larger |
| Differential Pressure | < 1.5 PSID at rated flow |
| Bowl Types | Aluminum, Polycarbonate |
The 20 SCFM coalescer delivers 20 SCFM at 100 PSI.
Both aluminum and polycarbonate bowls are available.
The part number is 3C‑020‑M02‑P.
