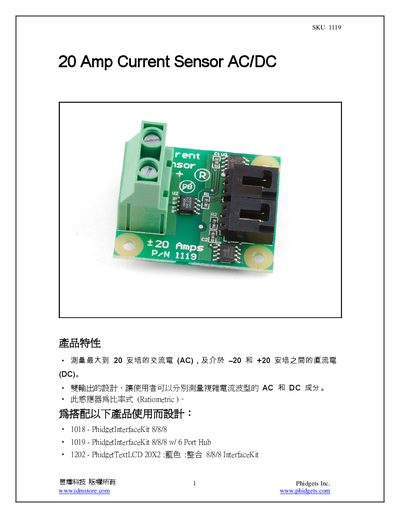

20 Amp Current Sensor AC/DC can measure up to 20 amps of AC current and between –20 and +20 amps of DC current. It has a dual output design, which allows users to measure the AC and DC components of a complex current waveform separately. This sensor is ratiometric.
The 20 Amp Current Sensor AC/DC measures up to 20 A AC and –20 A to +20 A DC, offering separate ratiometric outputs for AC and DC components. It is a ratiometric sensor designed for use with PhidgetInterfaceKit and PhidgetTextLCD devices.
The manual explains hardware installation, connection of the sensor cable to a PhidgetInterfaceKit, software setup on Windows or Mac OS X, and how to interpret sensor values using provided formulas. Detailed device specifications, connector pinouts, and alternative interface options are also included.
| Active Current Consumption | 10 mA |
|---|---|
| Output Impedance | 1 K Ω |
| Supply Voltage | 4.5 VDC to 5.5 VDC |
| Maximum Measurable AC Current | 20 A |
| Maximum Measurable DC Current | ±20 A |
| Maximum Measurable AC Frequency | 10 kHz |
| Maximum Supply Voltage | 5.5 VDC |
| Minimum Supply Voltage | 4.5 VDC |
| Current Conductor Resistance | 1.5 mΩ |
| Isolation – Current Loop to Sensor Output | 1600 V RMS |
| Recommended Wire Size | 10‑26 AWG |
| Wire Stripping Length | 6‑7 mm |
| Total Output Error (Max) | ±6 % |
| Total Output Error (Typical) | ±1.5 % |
It measures up to 20 A AC and between –20 A and +20 A DC.
