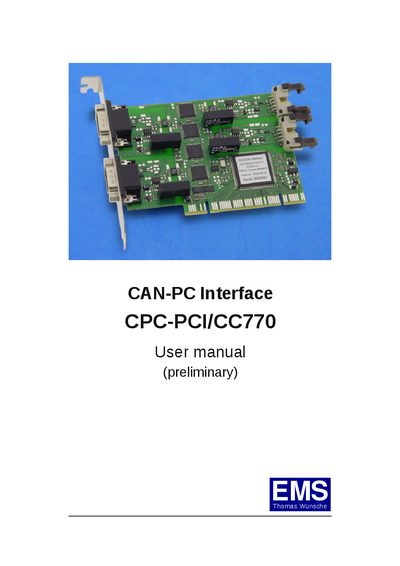

This document describes the user manual of EM Thomas Wünsche S CAN-PC interface CPC-PCI/CC770. The product is a CAN interface for industrial applications, with a compact size for PCI slots and compliant with CiA DS 102 and ISO 11898 standards for physical layer.
The CPC-PCI/CC770 is a compact PCI plug‑in card that provides one or two Bosch CC770 CAN controllers for industrial CAN bus applications. It supports CiA DS‑102 and ISO‑11898 physical layers, optional galvanic decoupling, and maps the CAN controller registers directly into PC memory for low‑latency communication.
The manual includes product attributes, ordering part numbers, a programming interface description with PCI vendor and device IDs, electrical characteristics, pin configuration, installation steps, and safety warnings. Contact information for EMS Dr. Thomas Wunsche is provided for technical assistance.
| CAN interface type | CiA DS 102 and ISO 11898 |
|---|---|
| Number of CAN controllers | One or two Bosch CC770 |
| Galvanic decoupling | Optional between PC and CAN bus |
| Physical size | Compact size for PCI slots |
| PCI Vendor ID | 0x10B5 |
| PCI Device ID | 0x9030 |
| PCI Subvendor ID | 0x10B5 |
| PCI Subsystem ID | 0x4001 |
