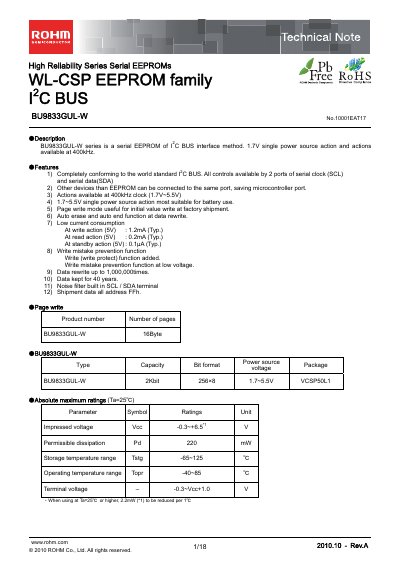

The BU9833GUL-W is a serial EEPROM of I2C BUS interface method. It supports 1.7V single power source action and actions available at 400kHz.
The BU9833GUL‑W is a 2‑Kbit (256 × 8) serial EEPROM that uses a standard I²C‑compatible bus. It operates from a single 1.7 V to 5.5 V supply and supports up to 400 kHz clock rates. Features include page‑write mode, auto‑erase, low standby current, and a write‑protect function.
The document provides electrical characteristics, timing diagrams, pin assignments, command descriptions, and ordering information. It also contains a notice on usage restrictions and safety considerations.
| Memory size | 2 Kbit (256 × 8) |
|---|---|
| Operating voltage | 1.7 V – 5.5 V |
| Standby current | 0.1 pA (Typ.) |
| Write current | 1.2 mA (Typ.) |
| Read current | 0.2 mA (Typ.) |
| Data retention | 40 years |
| Endurance (write cycles) | 1,000,000 cycles |
| Page‑write size | Up to 16 bytes |
The device supports a maximum SCL frequency of 400 kHz.
It is rated for up to 1,000,000 write cycles.
The standby current is typically 0.1 pA at 5 V.
A page‑write can program up to 16 bytes at once.
