The document provides specifications and characteristics of CSX532T Series SMD TCXO Oscillators, CSX750A Series High Frequency Ceramic Surface Mount Clock Oscillators, and CSX750FC, FB, FJ Series SMD Oscillators.

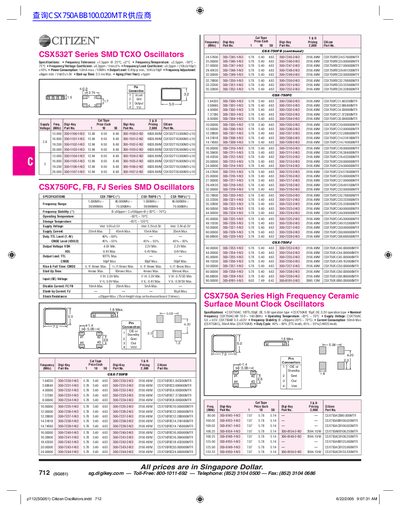

The CSX532T Series SMD TCXO oscillators from Citizen are high‑precision temperature‑compensated crystal oscillators designed for surface‑mount applications. The datasheet provides detailed electrical specifications, pin connections, and performance parameters.
In addition to the CSX532T series, the document also includes specifications for the CSX750A high‑frequency ceramic surface‑mount clock oscillators and the CSX750FC/FB/FJ series SMD oscillators, covering a wide frequency range and various supply voltages. This manual is written in Chinese.
| Frequency Tolerance | ±1.5 ppm @ 25 °C, ±2 °C |
|---|---|
| Frequency/Temperature | ±2.5 ppm, -30 °C ~ 75 °C |
| Power Consumption | 1.0 mA max. / 13 MHz |
| Output Level | 0.8 V p‑p min.; 10 kΩ / H9024 / 10 pF |
| Start‑up Time | 3.5 ms max. |
| Aging (First Year) | ±1 ppm |
The frequency tolerance is ±1.5 ppm at 25 °C, with an additional ±2 °C variation.
The start‑up time is specified as 3.5 ms maximum.
They consume up to 1.0 mA at a 13 MHz operating frequency.
The minimum output level is 0.8 V p‑p.
