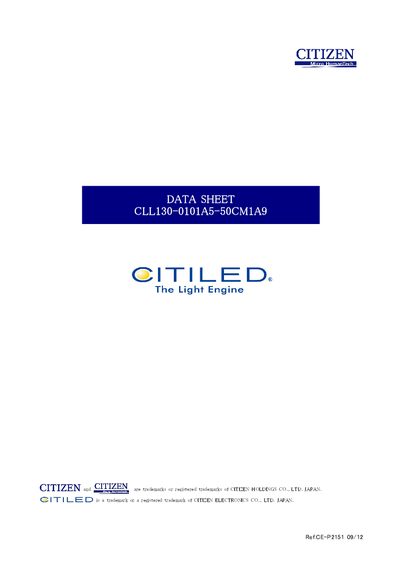

Citizen CLL130-0101A5-50CM1A9 LED Chip Datasheet

The Citizen CLL130-0101A5-50CM1A9 LED chip datasheet provides specifications, performance data, reliability tests, packaging and handling guidelines.

Brand: Citizen
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 14
File format: PDF
File size: 1.3 MB
Published: 05 October, 2026
Updated: 05 October, 2026
MD5 checksum: 710FC54FC3A9125D1B461445A4E5F10A
PDF: Citizen CLL130-0101A5-50CM1A9 LED Chip Datasheet PDF

About this manual

The CLL130-0101A5-50CM1A9 is a chip‑type LED lamp intended for general lighting. Its outline dimensions are 2.0 mm (L) × 1.6 mm (W) × 0.75 mm (H) and it operates at a correlated color temperature of 5000 K with a CRI of 80.

The datasheet lists electrical and optical characteristics such as forward voltage, luminous flux, and thermal resistance, as well as reliability test conditions, taping and packing specifications, and safety precautions for soldering, washing and storage.

What's inside

Scope of Application
Outline Drawing
Performance
Electro‑optical Characteristics
Reliability
Taping Specifications
Packing Specifications
Precautions
Designing Precautions
Product Use Precautions

Specifications

Operating Temperature Range	-40 °C to +100 °C
Package Dimensions	2.0 × 1.6 × 0.75 mm

Frequently asked questions

What soldering paste temperature is recommended for this LED chip?

A soldering paste with a melting temperature of 216 °C to 220 °C is recommended.
