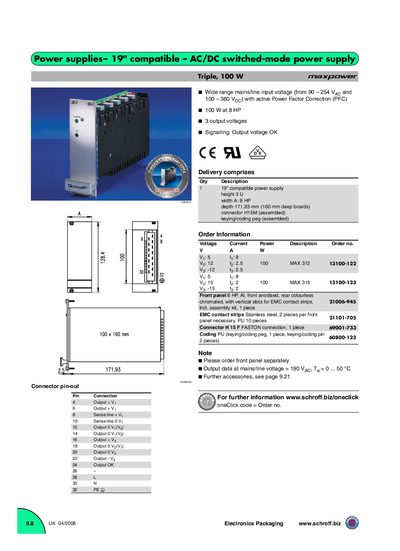

This document introduces the features and characteristics of the 19-inch compatible AC/DC switch-mode power supply. The product supports a wide range of input voltages, a power of 100W and 3 output voltages.
This manual describes the SCHROFF 19" compatible AC/DC switched‑mode power supply, including its dimensions, input range, output options, and protection features. It contains technical data, connector pin‑out diagrams, and instructions for assembly and wiring.
Safety information, warranty conditions, and detailed operating procedures are provided to ensure correct installation, adjustment of output voltages, and safe maintenance by qualified personnel.
| Input voltage range | 100 — 240 Vac |
|---|---|
| Operating input range | 90 — 254 Vac |
| Maximum output power (50 °C) | 40 W / 35 W |
| Dimensions (H × W × D) | 3 U × 8 HP × 160 mm |
The unit operates from 90 Vac to 254 Vac.
The output voltage is set via a front‑panel potentiometer and must be adjusted only by qualified personnel.
The product is covered by a two‑year warranty starting from the day of delivery.
