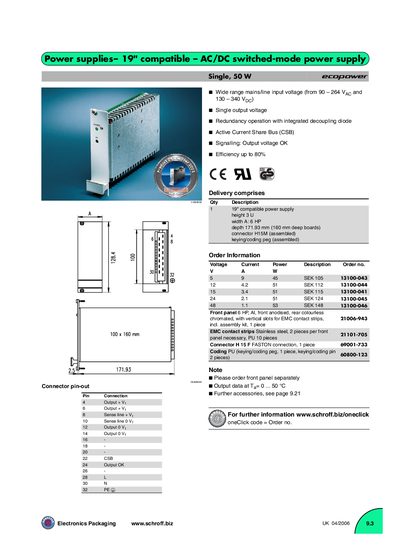

This manual provides the technical specifications, wiring diagrams and operating instructions for Schroff's SEK series 19" compatible AC/DC switched‑mode power supplies. It covers input voltage ranges, output power options, efficiency, current limiting, series and parallel operation, and the Output OK signal.
Safety information, warranty terms and handling instructions are included. Users are instructed to read the safety instructions, connect the protective earth (PE) conductor, mount the unit in an appropriate enclosure and ensure only qualified service personnel open the device.
| Maximum parallel units | 12 units |
|---|---|
| Output OK signal status | Active when output voltage is present |
Up to 12 units can be connected in parallel for redundancy or increased output power.
