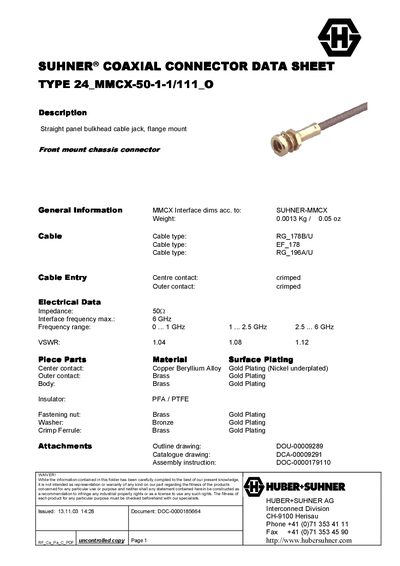

This document is about the datasheet of SUHNER 24_MMCX-50-1-1/111_O
The TYPE 24 MMCX-50-1-1/111_O is a straight panel bulkhead cable jack with a flange mount, designed for front‑mount chassis applications. It supports cable types RG_178B/U, EF_178 and RG_196A/U and features crimped contacts.
Electrical characteristics include an impedance of 502 Ω, a maximum interface frequency of 6 GHz, and VSWR values of 1.04‑1.12 across the frequency bands. Contacts and housing are made of copper‑beryllium alloy and brass with gold plating, while the insulator uses PFA/PTFE.
| Weight | 0.0013 Kg (0.05 oz) |
|---|---|
| Cable type | RG_178B/U, EF_178, RG_196A/U |
| Impedance | 502 Ω |
| Maximum interface frequency | 6 GHz |
| Frequency range | 0‑1 GHz, 1‑2.5 GHz, 2.5‑6 GHz |
| VSWR | 1.04‑1.12 |
| Center contact material | Copper Beryllium Alloy (Gold plated) |
| Body material | Brass (Gold plated) |
| Insulator material | PFA / PTFE |
The connector has an impedance of 502 Ω.
It can operate up to a maximum frequency of 6 GHz.
A bulk order (part number ending in OH) is for 100 pieces.
