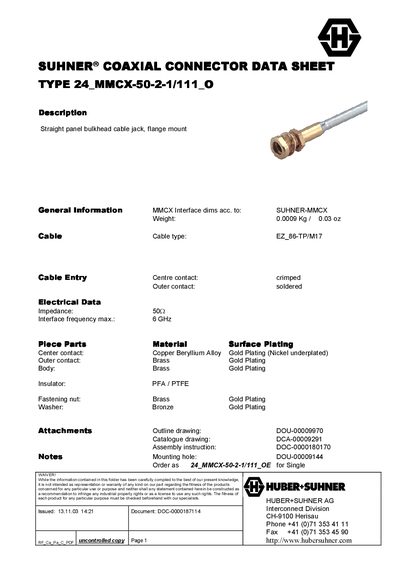

Huber+Suhner TYPE 24 MMCX-50-2-1/111 Coaxial Connector Datasheet
The TYPE 24 MMCX-50-2-1/111 is a straight panel bulkhead cable jack with flange mount, intended for high‑frequency applications up to 6 GHz. It is supplied as a crimped or soldered MMCX interface with a 0.0009 kg (0.03 oz) weight.
Key specifications include an impedance of 502 Ω, a centre contact made of copper‑beryllium alloy with gold plating, and outer contacts of brass with gold plating. The body and fastening nut are brass with gold plating, the insulator is PFA/PTFE, and the washer is bronze with gold plating.
Huber MMCX-111 specifications
| Weight | 0.0009 Kg / 0.03 oz |
|---|---|
| Impedance | 502 Ω |
| Maximum Interface Frequency | 6 GHz |
| Center Contact Material | Copper Beryllium Alloy, Gold Plating |
| Outer Contact Material | Brass, Gold Plating |
| Body Material | Brass, Gold Plating |
| Insulator Material | PFA / PTFE |
| Fastening Nut Material | Brass, Gold Plating |
| Washer Material | Bronze, Gold Plating |
Source: Huber+Suhner TYPE 24 MMCX-50-2-1/111 Coaxial Connector Datasheet
