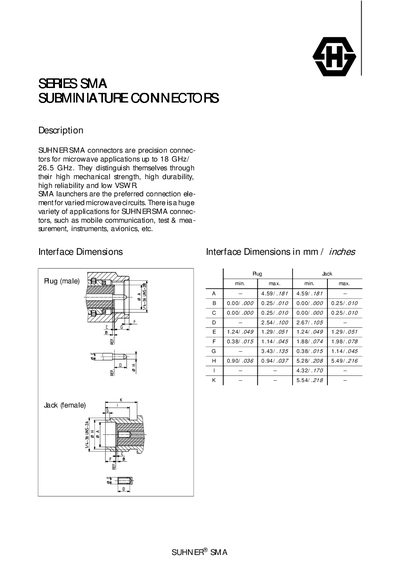

SUHNER SMA connectors are precision connectors for microwave applications up to 18 GHz/ 26.5 GHz. They distinguish themselves through their high mechanical strength, high durability, high reliability and low VSWR. They are preferred for various microwave circuits in applications such as mobile communication, test & measurement, instruments, avionics, etc.
The Suhner SMA series provides precision subminiature connectors for microwave use up to 18 GHz. They are designed for high mechanical strength, durability, reliability and low VSWR, making them suitable for mobile communications, test & measurement, instrumentation and avionics.
The datasheet lists detailed interface dimensions, electrical and mechanical specifications, environmental limits, material selections and recommended coupling torque values for up to 500 mating cycles.
| Impedance | 502 Ω |
|---|---|
| Cable dielectric diameter | 1.5 mm / 0.066 in |
| Insulation resistance | > 5·10⁹ MΩ |
| Temperature range | -65 °C … +165 °C |
The recommended torque is 0.8 Nm to 1.1 Nm (7.1‑9.7 in‑lb) for up to 500 mating cycles.
