TS 32 / PA modular PE terminals have ATEX certification and can be used in hazardous area applications.

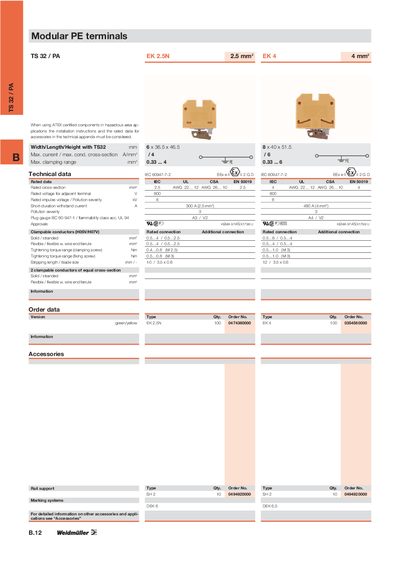

The handbook provides technical data, rated values, and ordering information for Modular PE terminals of various sizes (e.g., EK 2.5N, EK4, EK10, EK16, EK35). It includes dimensions, clamping ranges, torque specifications, and approval markings for use in ATEX‑certified hazardous areas.
The document lists detailed specifications such as rated voltage, impulse voltage, short‑duration withstand current, pollution severity, and approved standards (WER KEMA ATEX). Order numbers and accessory part numbers are also provided for quick reference.
| Rated voltage for adjacent terminals | 800 V |
|---|---|
| Short‑duration withstand current (2.5 mm) | 300 A |
| Maximum clamping range | 0.33 … 4 mm (PE) |
| Clamping screw tightening torque | 0.04 … 0.8 Nm (M25) |
| Pollution severity rating | 3 |
| Approvals | WER KEMA ATEX |
The rated voltage for adjacent terminals is 800 V.
It is 300 A for the 2.5 mm terminal.
The clamping screw torque should be set between 0.04 Nm and 0.8 Nm (M25).
They are approved by WER KEMA ATEX.
