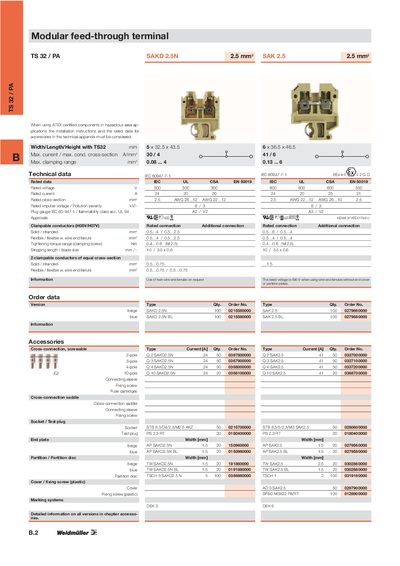

TS 32 / PA Modular feed-through terminal
This handbook presents the technical specifications for the Modular TS 32/PA feed‑through terminal family, including dimensions, rated voltage, current capacity, clamping range, and approved standards. Detailed tables list the various versions, their order numbers, and compatible accessories such as sleeves, screws, and test plugs.
The document also contains ordering data for each colour and version, as well as information on mounting components, partition discs, and marking systems, helping engineers select the correct part for ATEX‑certified hazardous‑area installations.
| Dimensions (Width × Length × Height) | 5 × 32.5 × 43.5 mm (variant) / 6 × 36.5 × 46.5 mm (variant) |
|---|---|
| Rated Voltage | 500 V |
| Rated Current | 24 A |
| Rated Cross‑section | 2.5 AWG |
| Maximum Clamping Range | 0.08 – 0.13 mm (small) / 4 – 6 mm (large) |
The rated voltage is 500 V.
The terminal is rated for a maximum current of 24 A.
The terminal measures 5 × 32.5 × 43.5 mm or 6 × 36.5 × 46.5 mm depending on the version.
Order data tables list each variant with its order number, e.g., beige SAKD 2.5N 100 – 9215560000.
