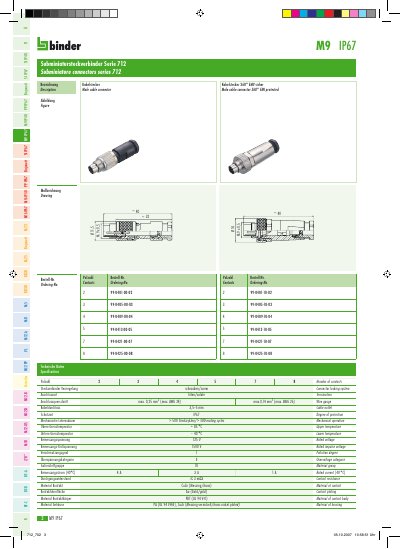

712 series miniature connectors
The Binder 712 series provides a range of subminiature connectors with IP67 protection, various contact configurations and robust mechanical life. Technical data include contact numbers, wire gauges, rated voltage, impulse voltage, current rating and material details such as gold plating and brass housing.
The document also contains assembly instructions for mounting the connectors, torque limits for the ring nut, and part drawings for male, female, angled and snap‑bush versions. All specifications are presented for both German and English users. This manual is written in German.
| Mechanical life | > 500 mating cycles |
|---|---|
| Contact plating | Gold (Au) |
They are guaranteed for more than 500 mating cycles.
