This document introduces the 712 series of circular connectors, including the features and model information of the connectors

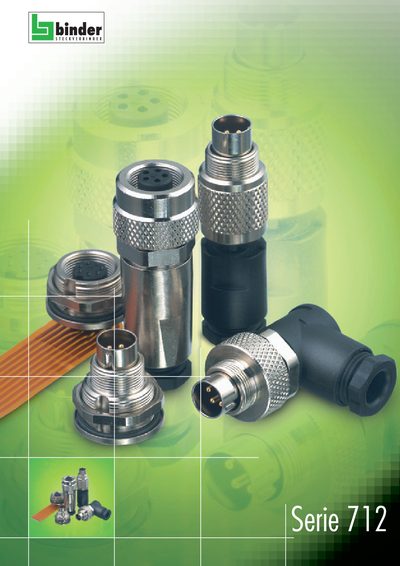

The Series 712 subminiature circular connectors from Binder are designed with a screw‑locking mechanism and provide IP67 protection. They are offered in male cable connectors, female sockets, angled versions and flange types, with options for solder, dip‑solder or touch‑solder terminations.
The handbook lists general and electrical characteristics, material options (gold‑plated contacts, PBT or PA66 housings), mechanical life (>500 mating cycles) and detailed assembly steps, including torque limits and shielding instructions. Drawings and part numbers for each variant are also included. This manual is written in German.
| Number of contacts | 3‑8 |
|---|---|
| Locking system | Screw |
| Termination types | Solder, dip‑solder, touch‑solder |
| Cable outlet size | 3.5‑5 mm (32‑20 in.) |
| IP protection | IP67 |
| Upper operating temperature | +85 °C |
| Lower operating temperature | ‑40 °C |
| Rated voltage | 125 V |
| Rated impulse voltage | 1500 V |
| Contact resistance | < 3 mΩ |
| Insulation resistance | > 10 MΩ |
| Mechanical life | > 500 mating cycles |
They are rated IP67, providing protection against dust and water immersion.
The connectors can be terminated with solder, dip‑solder, or touch‑solder contacts.
The upper temperature limit is +85 °C.
They are rated for more than 500 mating cycles.
