The MiniSPL is a portable, accurate sound pressure level (SPL) measurement microphone with a measurement range of 20 Hz to 120 kHz and accuracy of ±0.5 dB, featuring built-in calibration and measurement software.

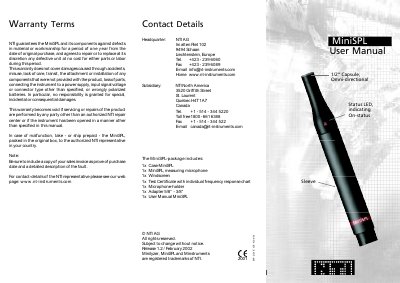

The MiniSPL manual provides a complete overview of the package contents, warranty terms and step‑by‑step instructions for connecting the microphone to a Minilyzer or using it as a stand‑alone device. It also includes safety notes, battery installation guidance and technical specifications.
Key sections cover the status‑LED indications, required load conditions, phantom‑power handling, and detailed technical data such as sensitivity, frequency response and environmental limits.
| Microphone Type | 1/2", omni‑directional, pre‑polarized condenser |
|---|---|
| Sensitivity | (20 ± 2) mV/Pa, (-34 ± 1) dBV/Pa @ 1 kHz |
| Frequency Response | According to IEC60651, Type 2 |
| Peak Acoustic Input | 130 dBSPL @ 1 kHz |
| Noise | 32 dBSPL, A‑weighted |
| Load Conditions | 20 – 200 kΩ balanced (phantom power off) |
| Power Supply | 1 × AA battery 1.5 V (≈300 h lifetime) |
| Dimensions | 22 × 180 mm (0.87" × 7") |
| Weight | 100 g (incl. battery) |
| Operating Temperature | 0 °C to +45 °C (32 °F to 113 °F) |
| Humidity | < 90 % RH, non‑condensing |
Press the push‑pin in, slide the sleeve off, insert a 1.5 V AA battery, and lock the sleeve with the push‑pin.
Phantom power must be turned off; the MiniSPL is phantom‑power resistant and will not operate correctly with it on.
