M/A-COM ANPC-171G - ANPC-176G Series Picocell Antennas are light weight, slim profile, weatherproof and corrosion resistant antennas that can be used in indoor or outdoor environments. They feature a unique pivot mount that swivels horizontally, tilts vertically and locks to enable precise positioning. Our circularly polarized models eliminate the need for spatial diversity antennas and help overcome performance-degrading multipath effects.
The ANPC‑171G to ANPC‑176G series are picocell antennas designed for indoor or outdoor use. They feature a lightweight, slim profile, built‑in swivel mount for precise positioning, and are weather‑proof and corrosion‑resistant. The series offers both vertical and right‑hand circular polarization options across several frequency bands.

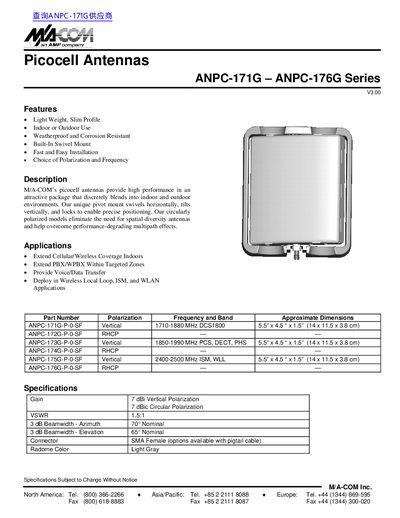

The leaflet lists key specifications such as 7 dBi gain, VSWR 1.5:1, 3 dB beamwidth of 70° azimuth and 65° elevation, SMA‑female connector, and a light‑gray radome. Applications include extending cellular/wireless coverage, PBX/WPBX zones, and deployment in wireless local loop, ISM and WLAN environments.
| Gain (Vertical Polarization) | 7 dBi |
|---|---|
| Gain (Circular Polarization) | 7 dBi |
| VSWR | 1.5:1 |
| 3 dB Beamwidth – Azimuth | 70° Nominal |
| 3 dB Beamwidth – Elevation | 65° Nominal |
| Connector | SMA Female (options with pigtail cable) |
| Radome Color | Light Gray |
The ANPC‑171G model operates in the 1710‑1880 MHz DCS1800 band.
The antenna provides a gain of 7 dBi.
The VSWR is specified as 1.5:1.
